The Omega Constellation falls into one of the classic categories of vintage models. Made in the 1950's it was a chronometer, the calibre is recognisable by both its design and red gold colour finishing.
The Constellation was originally introduced in 1952 and became a best-selling product for Omega. This model is predominantly in steel, with a steel and gold case back, (explanation below). The case back is screwed on using a specific key and the case was originally water resistant to 5 atmospheres. The watch has centre seconds with a semi-instantanious date mechanism.
Please click on an image below.
The symbol on the case back is the Cupola of the Geneva Observatory, where Omega had reset its own record for precision in 1951, surrounded by eight stars (on the images one has disappeared as a result of time and polishing), representing its chronometric achievements at the world’s observatories.
Technical. Omega caliber 561. Diameter of the calibre is 28.4mm, its height 5.0mm, it has 24 jewels and a frequency of 19800 A/h, power reserve approximately 48hours. Bi-directional automatic winding.
The balance assembly

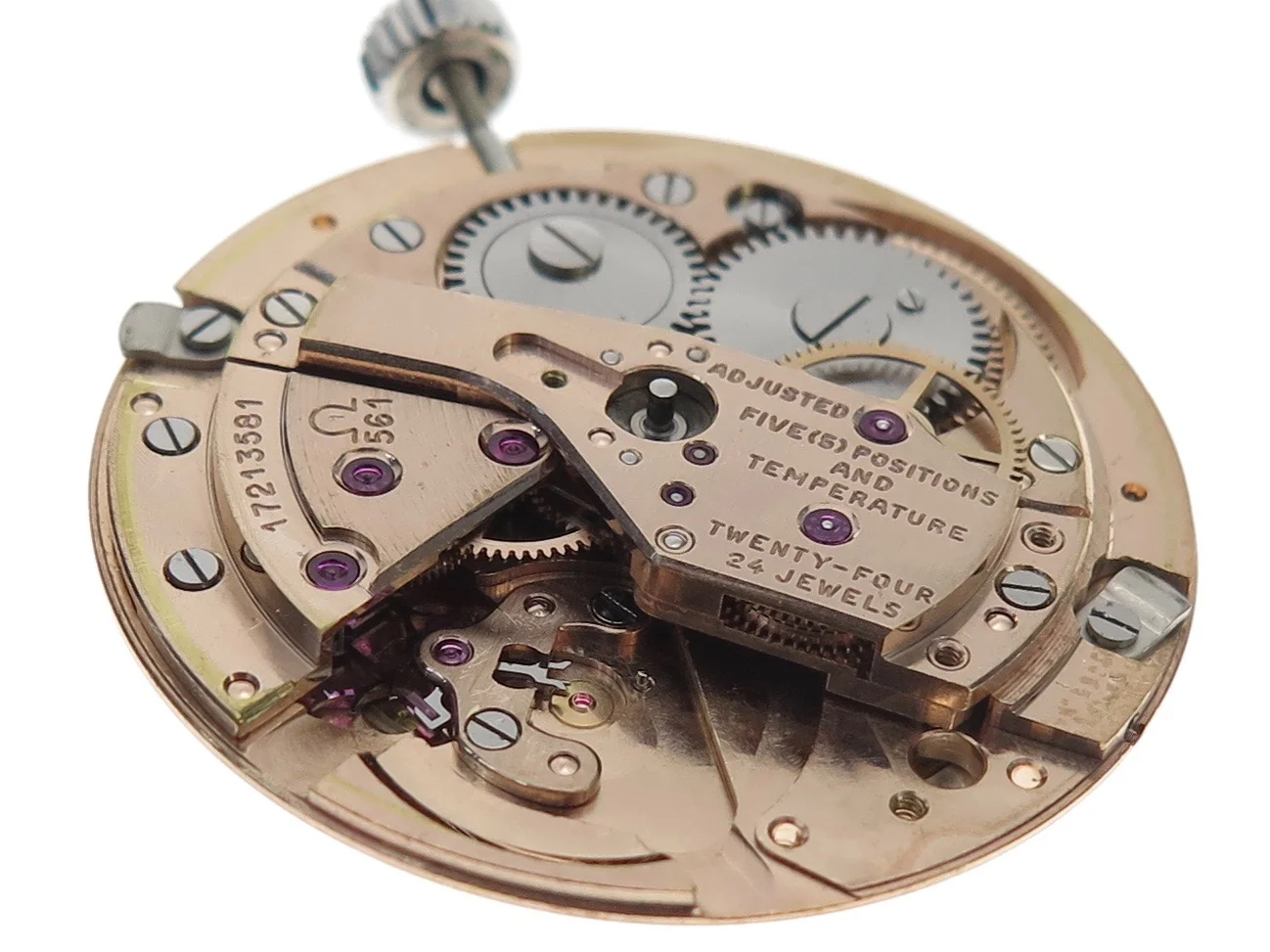

The automatic bridge and mechanism
Below, the seconds pinion friction spring. Necessary to take up any slack between the pinion and its driving wheel to allow the seconds hand to move smoothly.
Multiple views of the assembled watch
